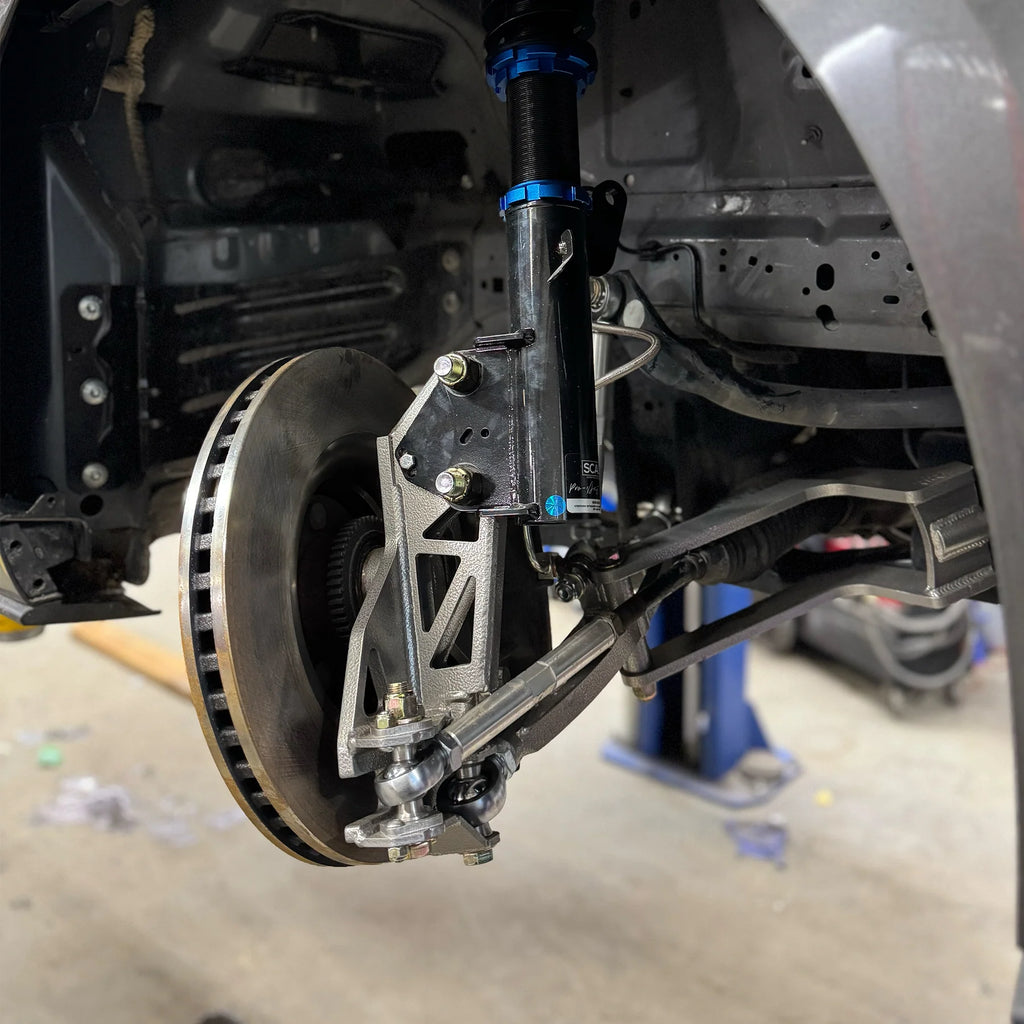

The Ford Mustang S550 Mantis Angle Kit is engineered for optimal handling performance while drifting. It features fully fabricated knuckles and arms constructed from high-strength alloy using a tab-and-slot design, ensuring robust welds and connections among all components. Additionally, the kit is designed to be on-car adjustable, allowing all adjustments for caster, camber, and toe to be made without removing any parts.
Key Features:
- Angle: 65+ degrees.
- Ackermann: Anti/Pro Ackermann adjustable.
- Roll Center: 50mm Roll center adjustment.
- Bump steer: Minimal bump steer in drift by perfecting tie-rod pitch angle.
- Caster: Optimized caster for lead and trail wheel contact, with built-in trail to the knuckle.
- Camber: Optimized camber to counteract caster at full lock.
- Track Width: Adjustable range from 50mm-75mm wider per side creating a stable and high clearance front end.
- Suspension Travel: Long travel range, full lock to lock at max droop and max compression.
- Joints: Chromoly 3 piece Heim joints and spherical bearings.
- Durable, Reliable & Lightweight: Made from High strength alloy steel and Aluminum.
Note: For custom colors, list it within the order notes.
Note: Please allow 2-3 weeks of fabrication before the item is sent.
The S550 Mantis Angle Kit was designed and tested with the help of Tyler Nelson from "Nelcos Garage".
